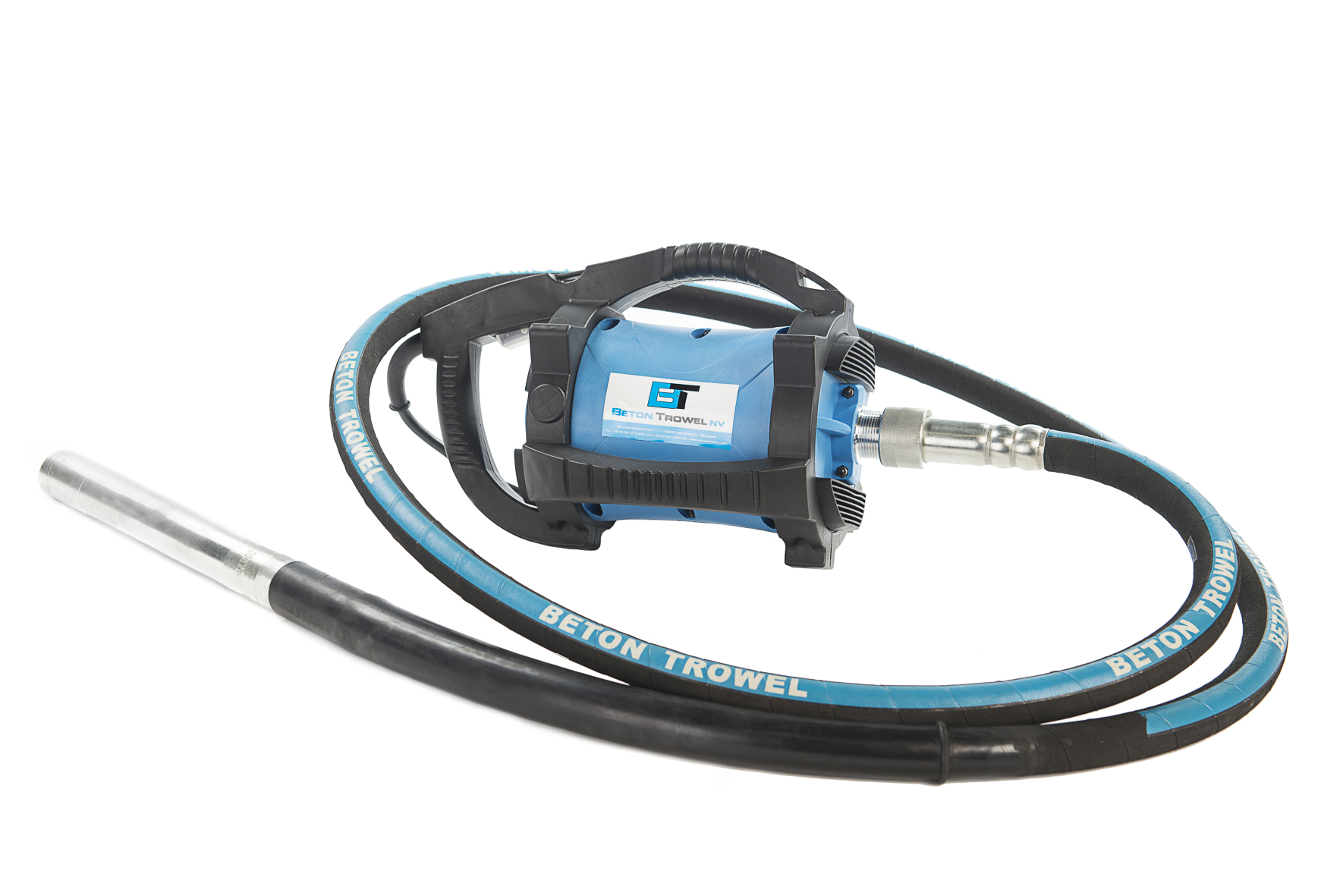

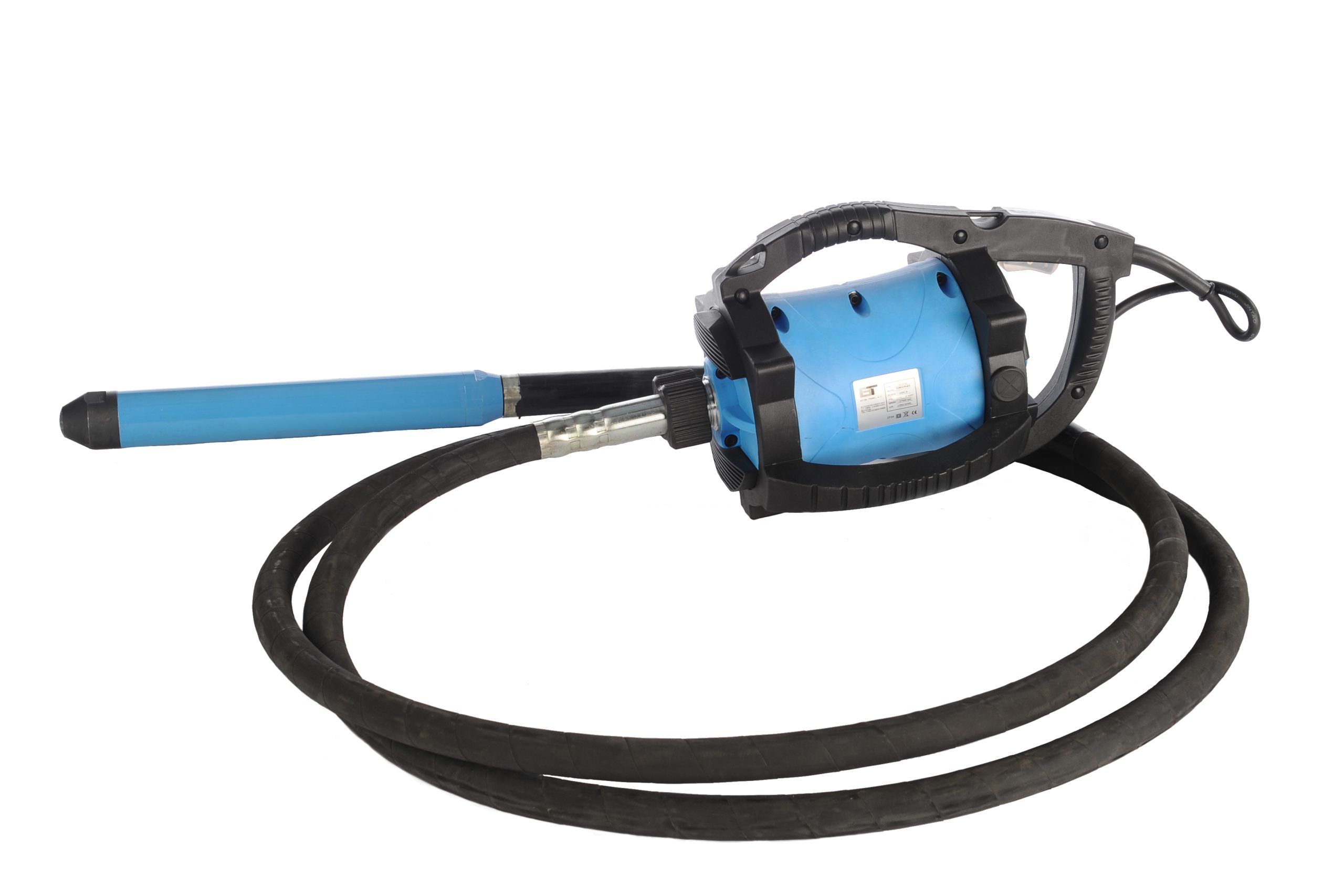

BT HUMDINGER ELECTRIC HANDHELD

  • Portable concrete vibrator.
  • Handles designed to protect the motor perimeter against knocks.
  • Cable reinforcement at motor outlet.
  • Housing with 5 times greater resistance than required by regulation.
  • Three handles around motor body and another handle on rear for use with short transmissions and upright jobs.
  • Anti-abrasion hose with integrated mesh reinforcement and interior strapping.
  • Reinforced needle connection by remoulding.
  • Easily removable and adjustable belt.
  • Foam and grating filter at air intake.
  • Leaktight switch protected from knocks.
  • Double insulated 2.3 kW engines, 110 V & 230V
  • Available with Wacker or other coupoing options for compatible fleet integration on request
MODEL VOLTAGE KW HZ MOTOR SPEED WEIGHT
HVU110 Humdinger Electric Power Unit 115v 2,3 50/60 18000 5.5KG
HVU220 Humdinger Electric Power Unit 230v 2,3 50/60 18000 5.5KG
MODEL HEAD DIAM LENGTH WEIGHT (KG) FREQUENCY (HZ) AMPLITUDE (MM)
HDV28/1 28 mm 1m 5.50 280 1.4
HDV28/2 28 mm 2m 6.10 280 1.4
HDV28/3 28 mm 3m 6.80 280 1.4
HDV28/6 28 mm 6m 9.40 280 1.4
HDV38/1 38 mm 1m 4.96 270 1.54
HDV38/2 38 mm 2m 6.26 270 1.54
HDV38/3 38 mm 3m 7.56 270 1.54
HDV38/4 38 mm 4m 8.86 270 1.54
HDV38/5 38 mm 5m 10.36 270 1.54
HDV38/6 38 mm 6m 11.86 270 1.54
HDV48/2 48 mm 2m 7.20 260 1.62
HDV48/3 48 mm 3m 8.90 260 1.62
HDV48/4 48 mm 4m 10.20 260 1.62
HDV48/5 48 mm 5m 11.70 260 1.62
HDV58/4 58 mm 4m 11.20 250 1.64
HDV58/5 58 mm 5m 12.50 250 1.64
Contact Beton Trowel
Humdinger ENG 20240711.pdf Show specification sheet
