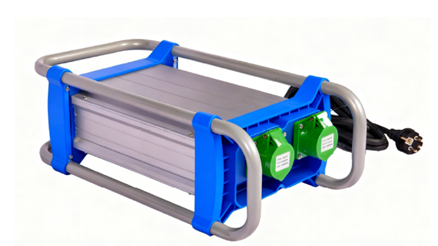

BTBOXCON is a portable electronic converter with an output power of 42 V/3 phases 200 Hz
that can operate with a single-phase power supply of 100 V-250 V (50-60 Hz).
It has a solid protective structure that stands out for its durability and robustness,
allowing high-frequency pokers of up to 2 x 60 mm to be connected
to the same equipment.
Lightweight, highly protected and offering superior performance.
| Model | BTBOXCON 32A |
| Input voltage (V) | 100-250V |
| Input frequency | 50-60Hz |
| Output voltage (V) | 42 V (+/-5%) |
| Protection Class | IP65 |
| Temperature | -10°C to + 40°C |
| Output frequency (Hz) | 200Hz |
| Current (A) | 32A |
| Overload capacity | 38A (60s) |
| Weight | 9.7 Kg |
| Cable length | 5 meters |
| Protection | IP65 |
| Model | No. of outputs | Maximum connection of vibrators per unit | ||
| 38 mm (8A) | 50 mm (11A) | 60 mm (16A) | ||
| BTBOXCON 32A | 2 | 2 | 2 | 2 |
