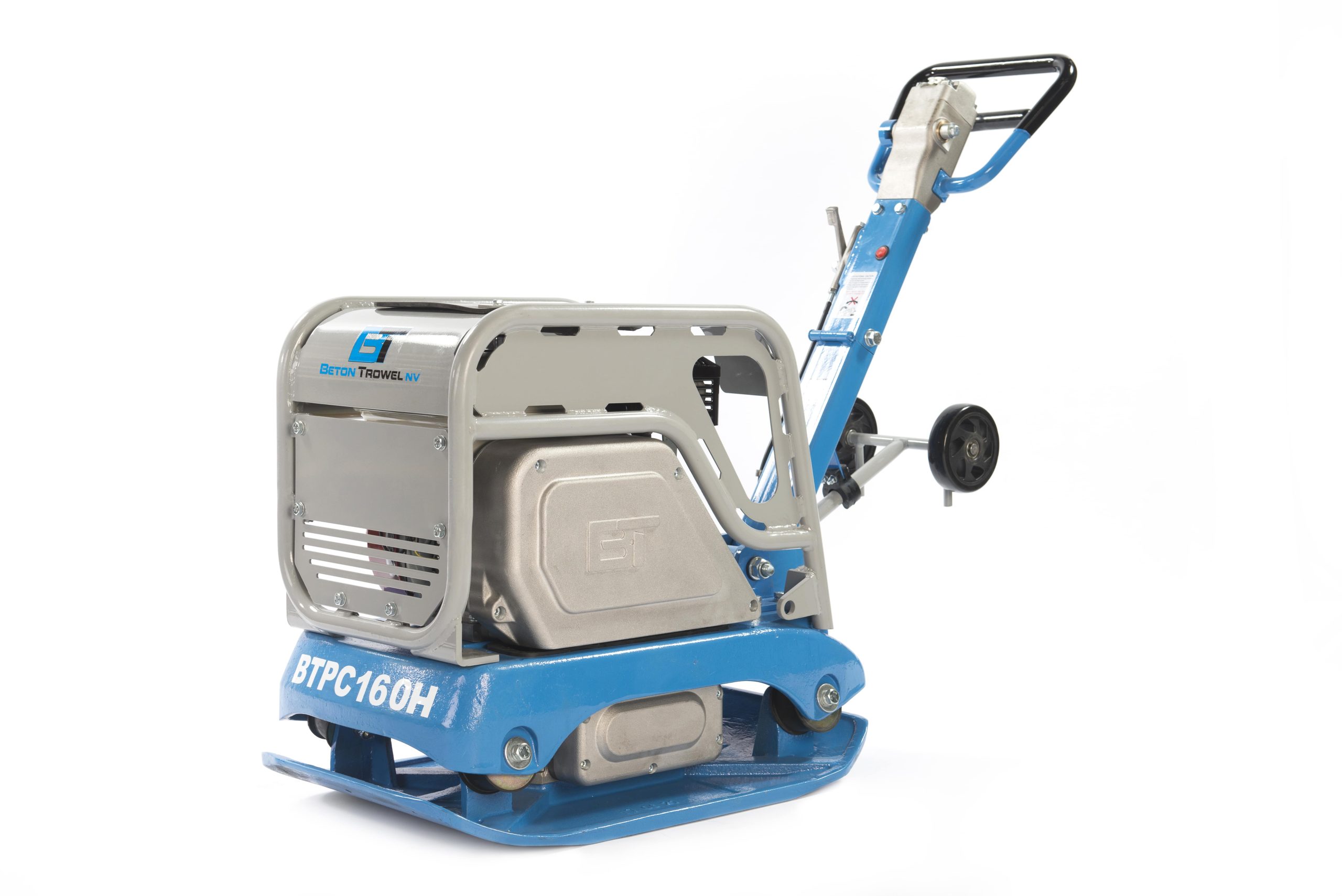

BTPC160H & BTPC160Y Reversible Plate Compactors

  • The hydraulic direction mechanism allows the machine to move forward, backward and compact on the spot.
  • The throttle lever is made from Casting Aluminum. It is durable and comfortable for the operator.
  • The closed-style frame protects the engine and has a hidden hook.
  • The folded handle saves space during transportation.
  • With a water tank, the machine can work on asphalt. A lock prevents the tank from being stolen.
  • The casting aluminum belt cover is easy to cool, increasing the lifespan of both the engine and clutch. It also prevents sand, soil, and dust from getting inside.
  • The high-quality shock absorber efficiently absorbs vibrations, ensuring operator comfort.
  • The optional wheels make transportation easy.
  • The ductile iron base is durable and strong.
  • The Plate Compactor with a Rubber Mat works for bricks.

Experience exceptional compaction performance and easy control with the BTPC160H and BTPC160Y Reversible Plate Compactors.
Its compact size and versatile features make it the ideal choice for small areas and patching conditions.

MODEL ENGINE WEIGHT PLATE SIZE FREQUENCY VPM CENTRIFUGAL FORCE TRAVEL SPEED GRADIANT CLIMB WATER TANK RUBBER MAT
BTPC160H HONDA GX200 160KG 700 X 430 5400 27kN 25m/min 35% YES OPTION
BTPC160Y YANMAR L70 DIESEL 180KG 700 X 430 5400 27kN 25m/min 35% YES OPTION
Reversible Plate Compactors ENG 201110041.pdf Show specification sheet
