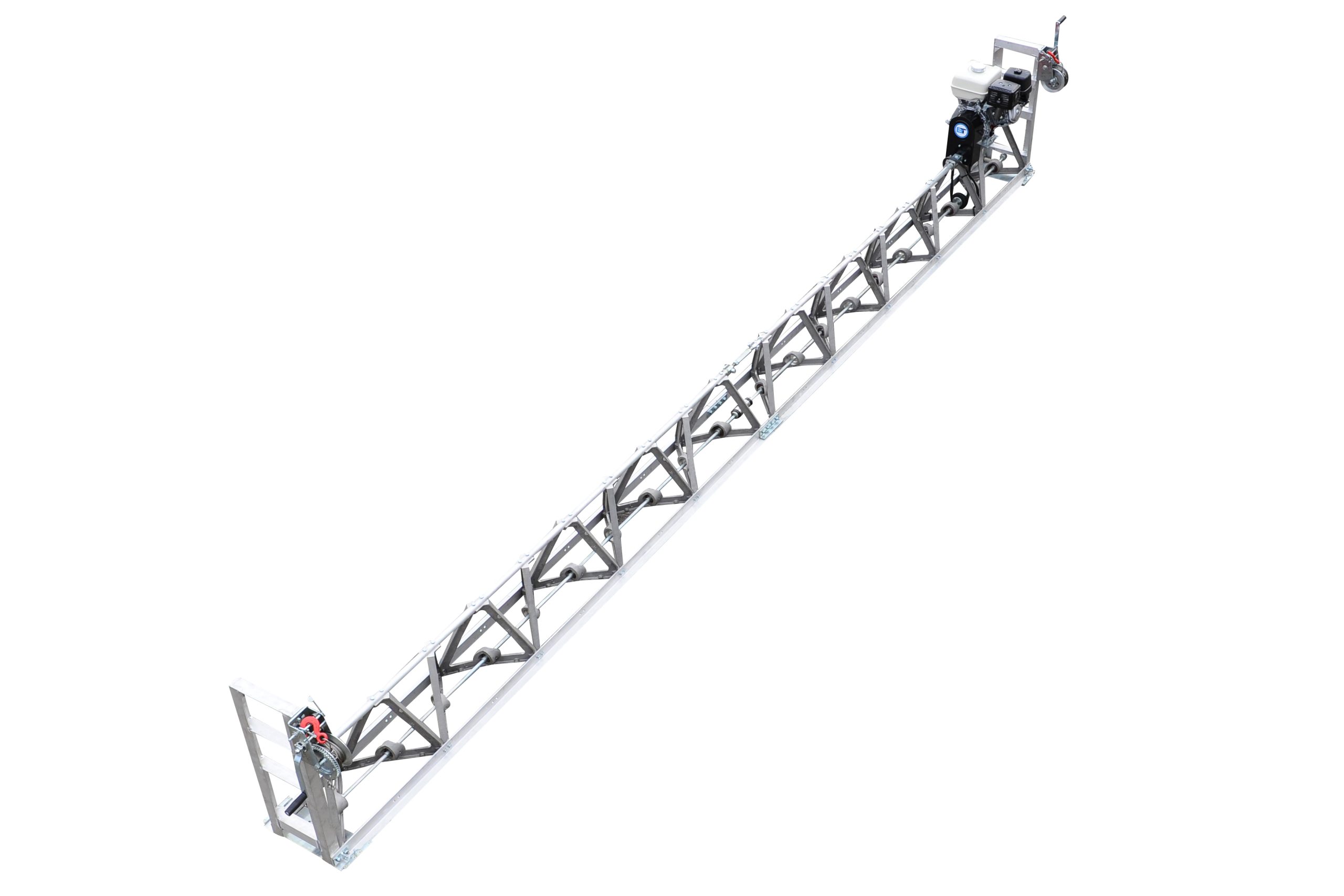

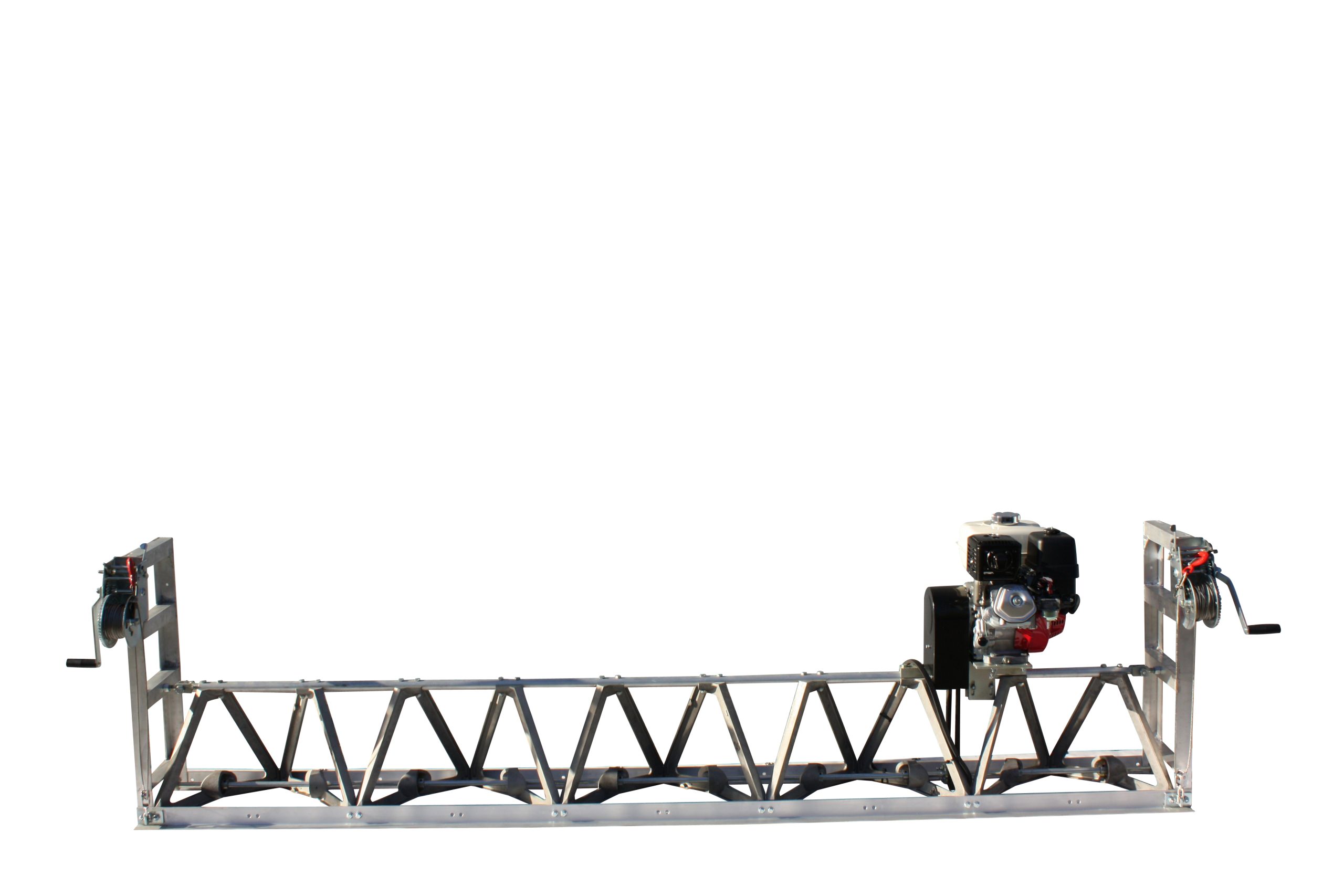

Wide Bay Trusss Screeds

Built in sections to maximum length of 15M
All aluminium frame construction with unique cast “A” frame
Bolted frame construction eliminates weld failure and allows easy alignment and easy low cost replacement of damaged parts
Powerful combination of vibration frequency and amplitude for excellent concrete compaction and removal of air voids
Front blade is T shaped to cut through the concrete and rear blade is L shaped to leave a perfect level finish
Heavy duty winches for ease of operation
Accurate to plus or minus 3mm across whole Screed.

Section length option	10 ft (3.15m) 8ft (2.54m) 5 ft (1.52m) 2.5 ft ( .76m)
Section Width	.38m
Section Heigth	.40m
Weight per M	12 Kg
Eccebtricvibration shaft speed	2800 RPM
Centrifugal force/unit length	220 N/M @ 2800 RPM

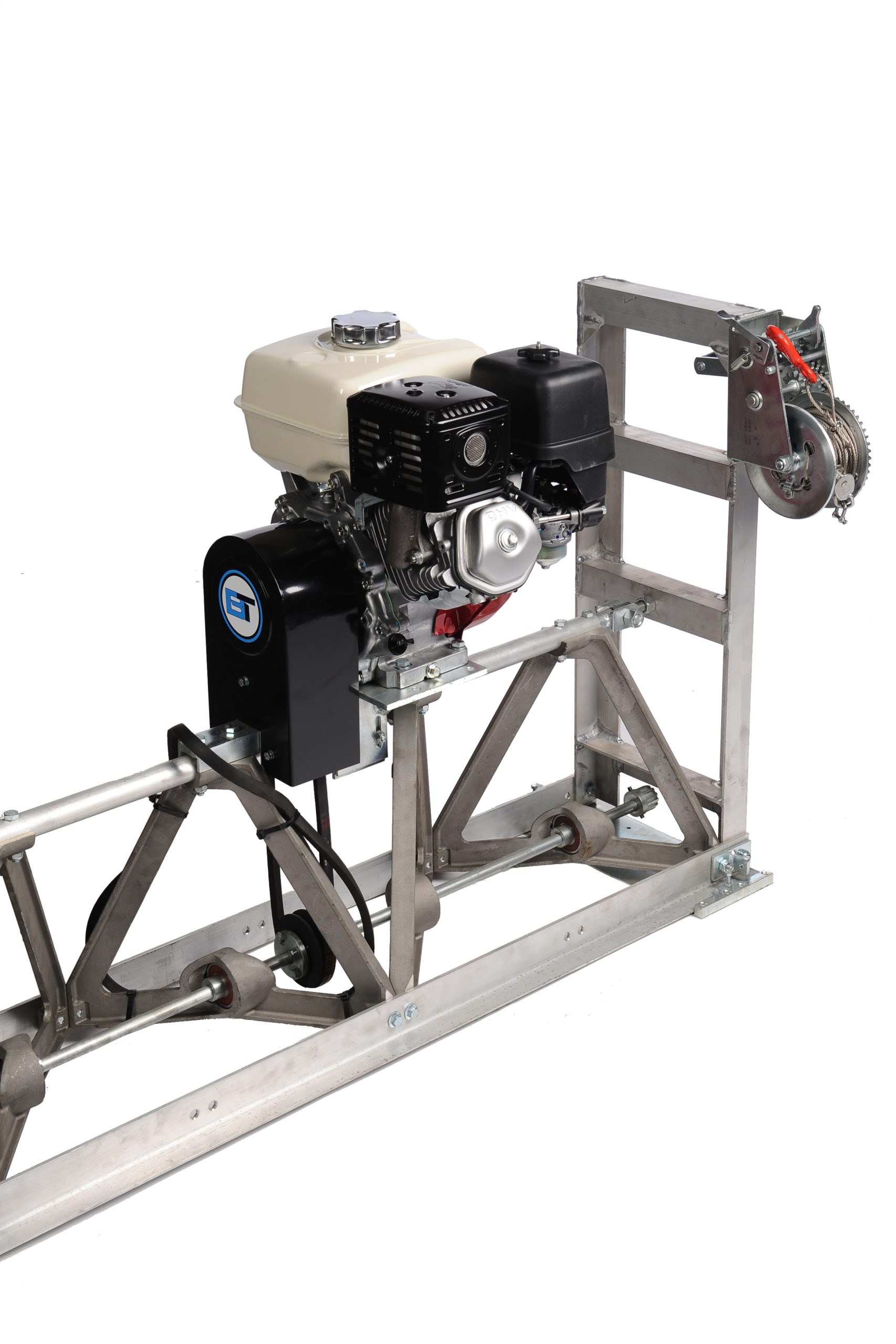

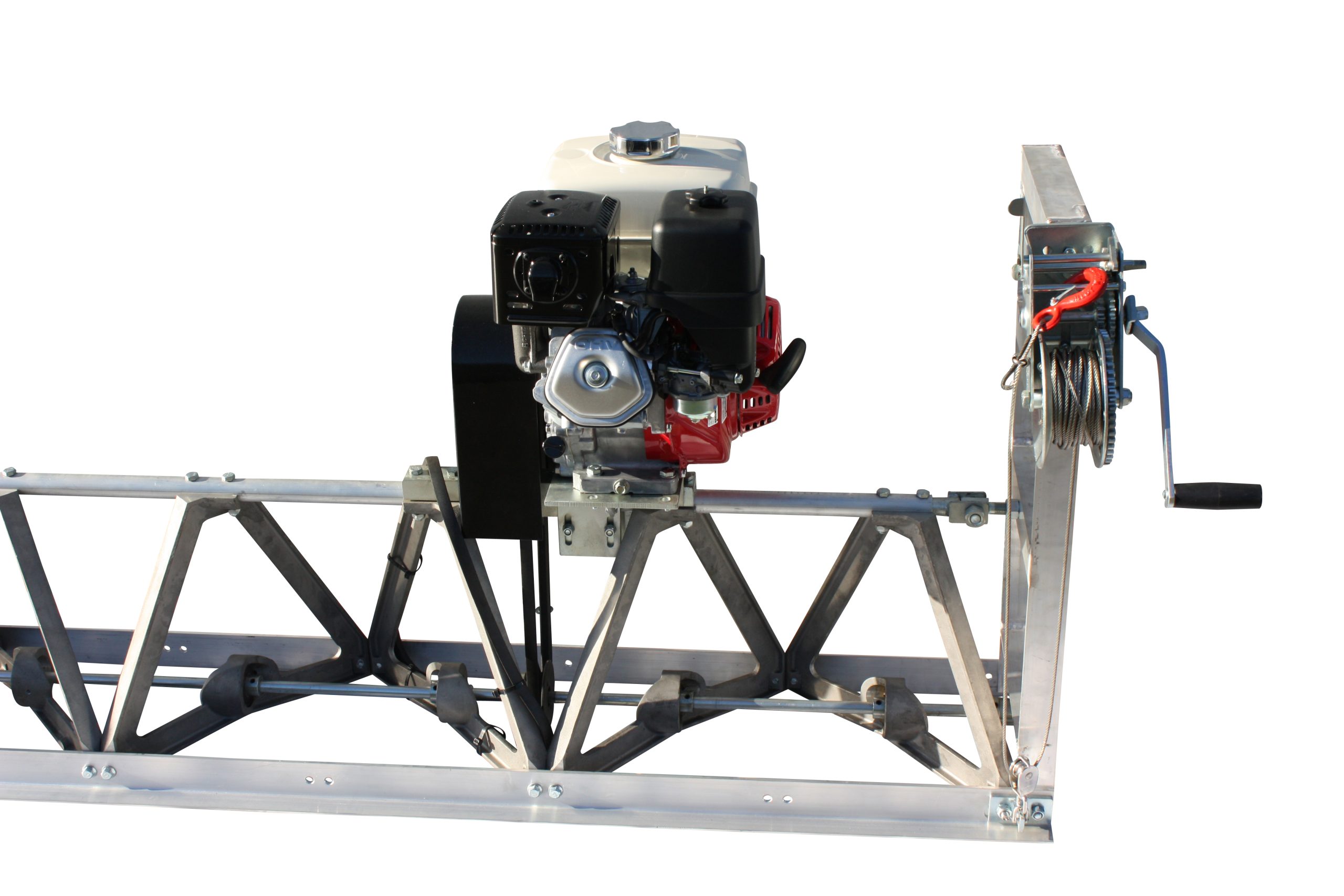

Power section includes	Honda 9 HP power kit, end handles complete with winches and cables.

Truss Screed 20221107.pdf Show specification sheet
