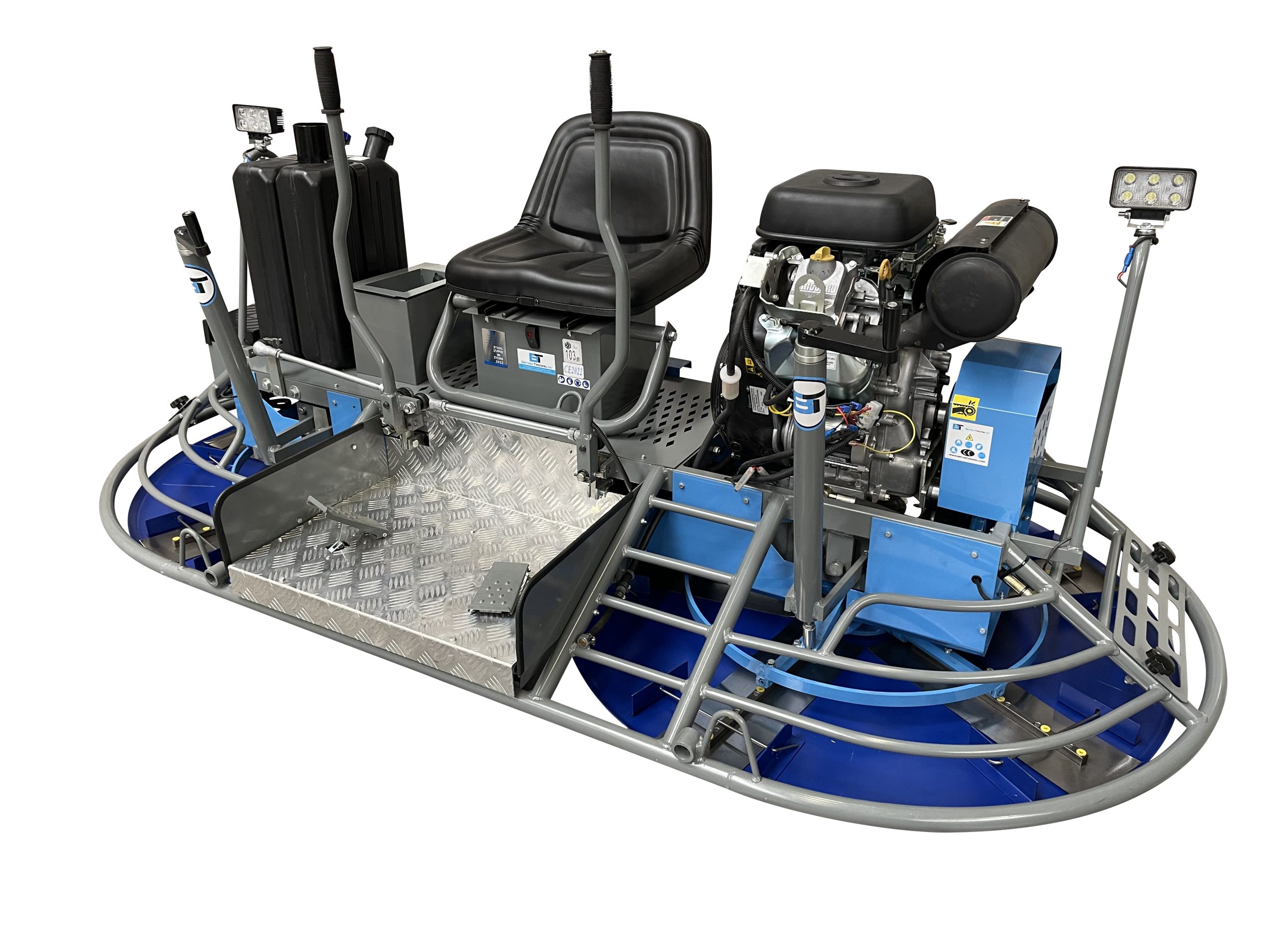

Ride On Trowel BT1200 Low Riders

A well balanced powerful floating and high speed finishing machine.
Built strong but with simple mechanical construction to ensure contractors can more easily deal with any service requirements.

  • Drive: Heavy Duty reduction gearboxes (24 month Warranty)
  • Ergonomic manual steering
  • 4 x Running Lights as standard
  • Seat adjuster standard
  • Water spray system, drink holder and engine hour meter standard
  • 5 Blade spider assembly’s for stability and fast closing of floor on final finishing. Spider machining is precision
    tolerance fit for the trowel arms therefore minimising wear and ensuring long service life
  • Grease points at spider to ensure continual free movement of blade pitch
  • Highly effective float pan machine with plenty power for this operation
  • Good all round visibility of blades and concrete for the operator
  • Four x crane sling lifting points
  • Optional: 2 wheel transporter for site use and blade changings.
  • CE Certified
Model Engine Dimensions Weight Blades Steering RPM
BT1200L Vanguard 35 HP Twin Cylinder 254 x 127 x 104 cm 490 KG 10 Manual 145



BT1200L LOW ENG 20221003.pdf Show specification sheet
